myPoint

About myPoint Grid

myPoint Grid combines three tools in one: Crosshair, Grille and Coordinates.
Note: when myPoint is running, no icon is shown in the Dock.
The only visible part is a small icon in menu bar extras - so called myPoint icon:

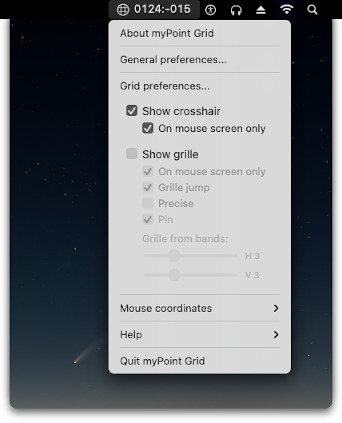

myPoint menu

Click on myPoint icon to open myPoint menu - this is a drop-down menu shown just below myPoint icon.
All the basic control is through myPoint menu:

About window

Click on "About myPoint Grid" row in myPoint menu to open the About window - it contains information about the current version of myPoint.

There are important links at the bottom of the window too.

Exiting myPoint

Open myPoint menu and click on "Quit myPoint Grid" row to terminate the application.

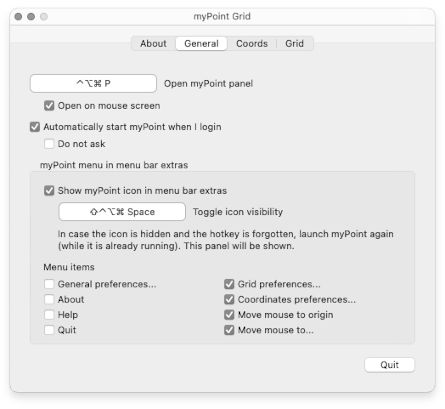

Customizing myPoint

Open myPoint panel and select the General view.
Automatically start myPoint when I login
Select this option to append myPoint in Login Items list.
Do not ask
Select this option to skip the alert box about auto-start at login.
Open myPoint panel
Hotkey combination to open myPoint panel.
Default combination is Control + Option + Command + P.
Menu bar icon visibility
Show myPoint icon in menu bar extras
Deselect this option to remove the Application icon from menu bar extras.
Toggle icon visibility hotkey
Hotkey combination to toggle visibility of the Application icon in menu bar extras.
Default combination is Shift + Control + Option + Command + Space.
Safety note:
Please write down this hotkey before you hide the icon.
In case the icon is hidden and the hotkey is forgotten, please relaunch myPoint (while it is already running in the background) in order to open myPoint panel.

Working with the Hotkey editor

The editor operates in two modes - Edit and View - and two states - Normal and Hint. The Normal state is by default. The Hint state occurs when the mouse hovers over the editor or in other circumstances.
View mode
Depending on the state the Editor displays current hotkey combination (in normal state) or the suggestion to change the hotkey (in Hint state).
Hint state: when the mouse hovers over the editor.
Enter Edit mode: click inside editor, or press Space while editor is focused.
Edit mode
Normal state: the editor shows key symbols if at least one of the following modifier keys is pressed: Shift, Control, Option, Command.
Hint state: if no modifier key is pressed, or if the mouse hovers over the star button in the right side of the editor.
Exit Edit mode: entering an acceptable hotkey combination or pressing ESC key.
Acceptable hotkeys:
  • A regular key combined with one or more modifier keys;
  • F-key (F1 to F19) with or without modifier keys;
  • Note: if only a regular button is pressed nothing happens.
